Dust filter cartridge pleating machine-rotary type pleating

Item No.: SIIC-M034-PR
Dust filter cartridge rotary type pleating machine is specially for making pleats. Plain pleat and pleat with locks are available. The available filter media materials include 100% polyester, cellulose and synthetic (80% cellulose mix 20% polyester).
INQUIRY
Description Specification Data Filter Making Process Video
Dust filter cartridge pleating machine-rotary type pleating
Model NO.: SIIC-M034-PR
Dust filter cartridge rotary type pleating machine line is specially for making pleats of dust collector pleated filter cartridge. Both of plain pleat and pleat with locks are available. The available filter media materials of dust filter cartridge include 100% polyester, cellulose and synthetic (80%cellulose mix 20% polyester). The pleat is made of one layer of filter media.

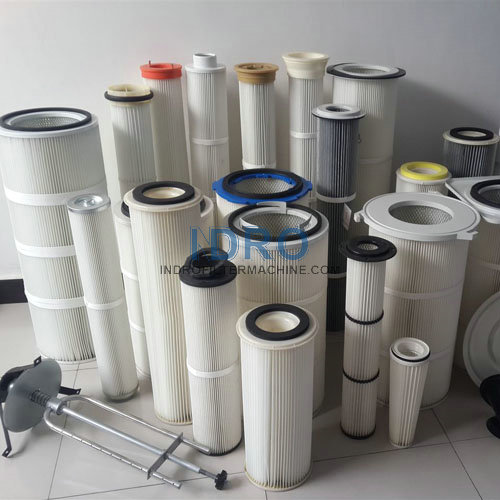

Images of related dust filter cartridges rotary pleating machine and pleats:

Rotarty Pleating Machine

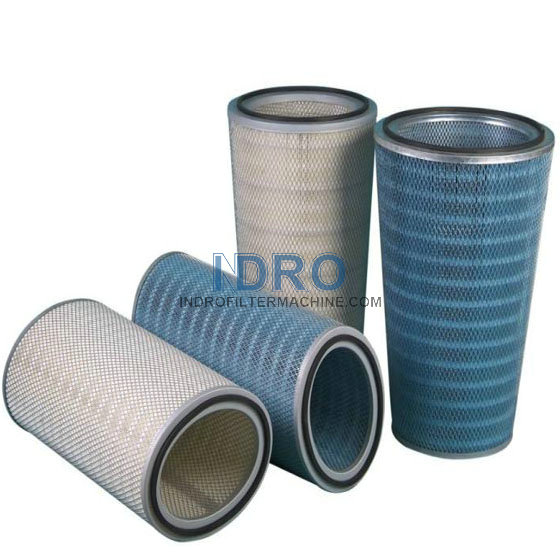

Dust filter cartridges with plain pleats

Dust filter cartridge with pleats with block

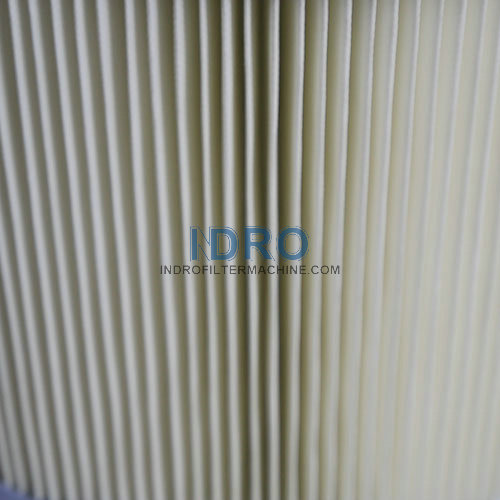

Plain pleats

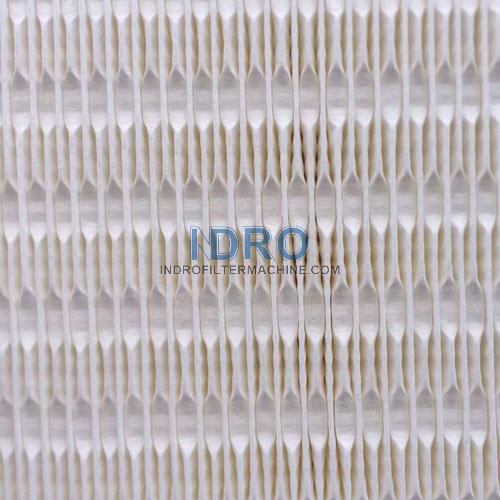

Pleats with block

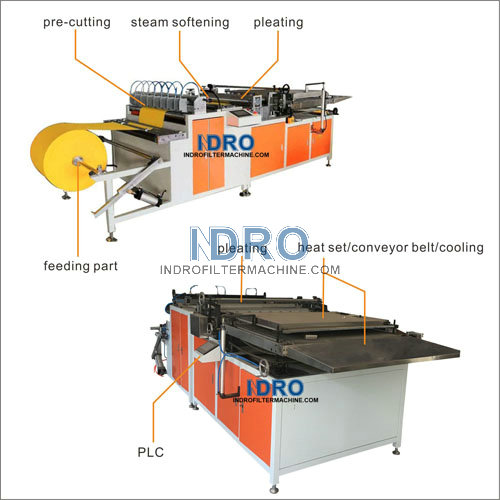

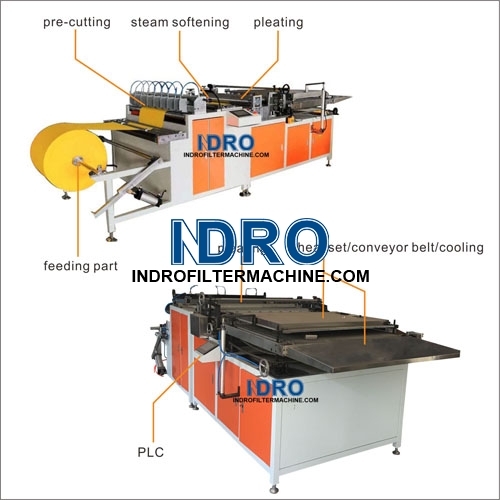

Main parts:
Automatic feeding part
Pre-cutting
Pre-heating(Steam softening)
Pleating with pleats number counting and making mark automatically
heat set/conveyor belt/cooling
Main Parameter:
/Pleating speed: 5~35m/min
/Available filter media roll width: Max width: 600mm, 850mm, 1100mm, 2000mm, others max width can be custom made as per customer's requirement. Min width: 32mm
/Pleat height: 15-50mm, pleated height cannot be changed step-less.
/Pleats roller: As per exact pleat heights (depths), one height needs one group of roller.
/The whole line size: 3000(length)*1050(width)*1550mm (height) (width is based on 600mm roll width), for other roll width, the width will be different.
/Working air pressure: 0.6Mpa
/Machine weight: 750kg based on 600mm roll width, if other roll width, the weight will be different.
/Power supply: 380V/50HZ, other voltage can be custom made.
Features:

/Automatic counting pleats number and make mark by ink;
/Media roll fixed by air shaft;
/Media tension controlled by power brake and tension controller;
/PLC controller system for operation speed;
/Pleat height is adjusted by PLC touch screen and replacement of the roller group;
/Available material: 100% polyester, cellulose and synthetic (80%cellulose mix 20% polyester)
/Pre-cutting is needed or not shall depends on exact filter paper
/For making plain pleats and pleats with blocks
Dust collector filter cartridge making process:
/Pleats making and seam welding-inner and outer wire mesh making rolling and welding-half finish
/Dust filter cartridge with plastic PU top-bottom cover-end caps: half finish-PU cap gluing (pouring two-component material) to stick cover onto the cartridge body-finish
/Dust filter cartridge with metal end caps-top-bottom covers: half finish-metal cap gluing-sealing gasket gluing-finish


INDRO-dust-air pleated filter cartridge making machines equipment production line
