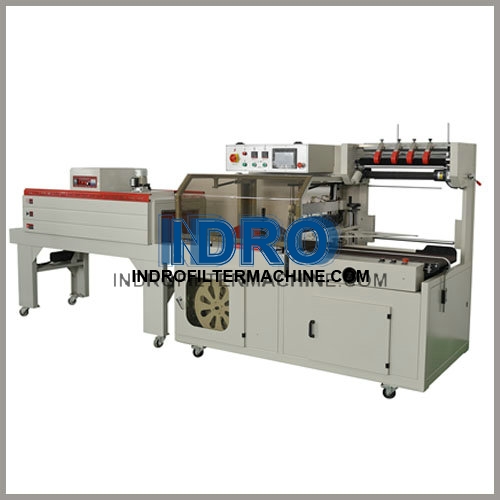

Fully Automatic Filter Cartridge Package Machines Line
Model No.: SIIC-M040
SIIC-M040 is one ideal machines line for do package of filter cartridge automatically. It is widely used in packages of different types of filter cartridges, including swimming pool/SPA filter cartridges, melt blown filter cartridges, string wound filter cartridges, carbon active filter cartridges and others filter cartridges.
Features and Specifications:
Features:
/SIIC-M040 is one ideal machines line for do package of filter cartridge automatically.
/It can be designed and custom made according to different sizes of all items of filter cartridges.
/With movable type punching device, you can switch the punching position and control the pinholes number.
/Sealing knife uses the special steel knife with Teflon treatment which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking with zero pollution.
/Using digital temperature controller which built-in PID function. Sealing blade temperature is extremely sensitive and accurate which can be set arbitrarily.
/Imported photoelectric sensor, positioning accuracy, fast response.
/Adopt PLC programmable controller and man machine interface, simple operation.
/Manual adjustment film-guide system and feeding conveyor platform make the machine suitable for different width and height items.
/Equipped with automatic scrap recycling mechanism, built-in film broken alarm function.
/The sealing blade itself is also quipped with automatic protection function which effectively prevent from accidental cutting.
/Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film.
/The entire machine realizes unmanned operation with the production line connecting.
/Widely used in packages of different types of filter cartridges, including swimming pool/SPA filter cartridges, melt blown filter cartridges, string wound filter cartridges, carbon active filter cartridges and others filter cartridges.
Specifications:

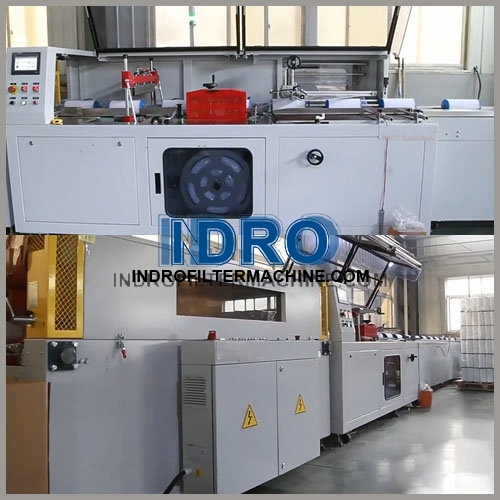

This machines line mainly include 3 parts:
Part1. Sealer Part
Power Supply: 220V, 3Phase, 50Hz
Power:1.8KW
Packing Size: According to customer's filters sizes range
Sealing Size: Depends on customer's filters sizes range
Table height:800mm, or other can be custom made according to customer's requirement.
Package speed: 15-30pcs/min, depends on filter size
Air source:0.6Mpa
Shrink Film: POF
Sealing form: fully closed

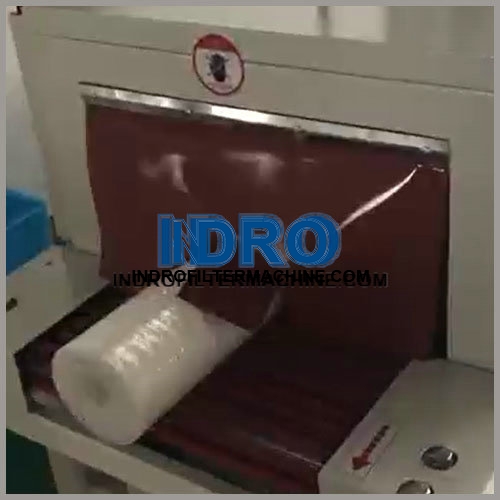

Part2. Tunnel Part
Power Supply: 380V, 3Phase, 50Hz
Table height:780+50mm, or other can be custom made according to customer's requirement.
Converyor load: max 30kgs
Converyor speed:1-15m per minute
Part3: Feeding Part
The feeding conveyor length is to be custom made according to customer's requirement.
