High flow filter pleated cartridge end cap welder-welding machine

Item No.: SIIC-M028-ECW

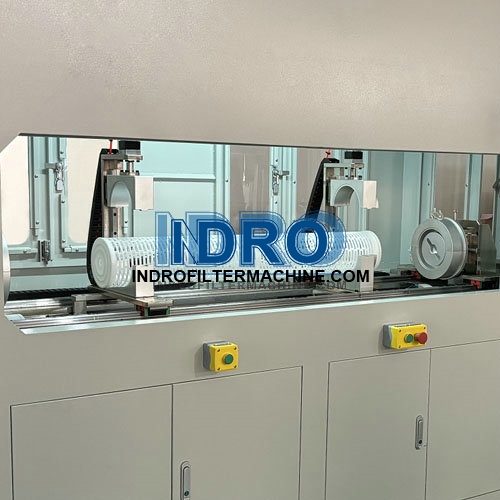

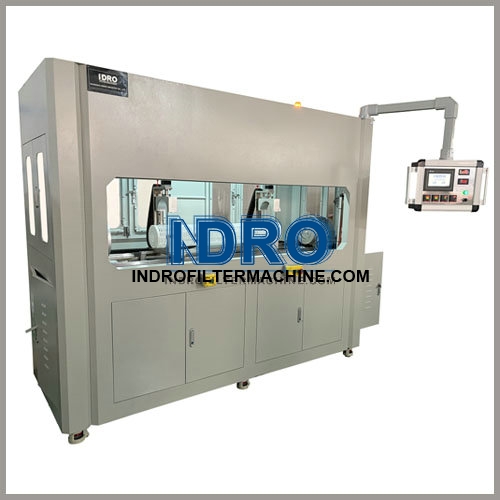

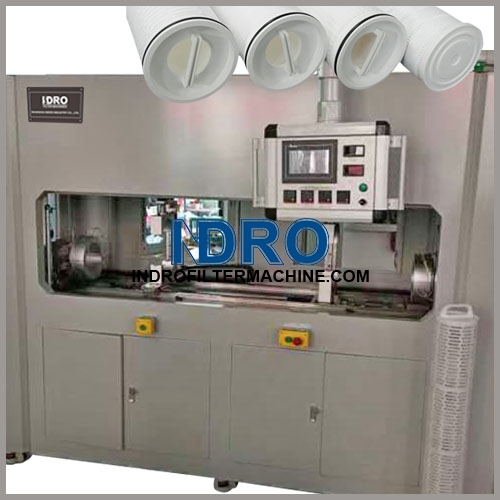

INDRO SIIC-M028-ECW high flow pleated filter cartridge end cap welder-capper welding machine is special used for welding cap and connector ends of high flow  filter , big diameter-fat pleated filter, such as 3M, Parker, Pall high flow filters.
INQUIRY
Description Specification Filter Making Process Video
High flow filter pleated cartridge end cap welder-welding machine
Model No.: SIIC-M028-ECW


INDRO SIIC-M028-ECW high flow pleated filter cartridge end cap welder-welding machine is special used for welding cap and connector ends of high flow pleated filter cartridges, big diameter-fat pleated filter cartridges, such as 3M, Parker, Pall high flow filter cartridge.

Applications:
Welding connector end caps of high flow filter cartridges. Special for high flow pleated filter cartridges, big diameter-fat pleated filter cartridges, such as 3M, Parker, Pall high flow filter cartridge.

Features:
Special for big diameter filter cartridges-fat pleated filter cartridges with high flow.
Special for high flow pleated filter cartridges similar with 3M, Parker, Pall high flow filter cartridge.
Available diameters: 82-152.4mm (3"-6"), other diameter can be custom made.


Specification Data:
Frame: Folded plate welding and standard bolt connecting structure
Welding temperature, welding time, welding depth is controlled automatically.
Special for welding caps of high flow pleated filter cartridges.
Good and stable sealing ability and fastness
Controlled automatically
Easy operation
Standard Model is with manual door, automatic door is optional as per customer's requirement.
Power: standard 380/3 phase, other can be custom made as per requirement.
SIIC-M028-ECW: hot plate welding system, heating mould (Brass H62), welding cap from one end per time.
SIIC-M028-ECWH: hot plate welding system, heating mould (Brass H62), welding caps from both ends per time, double production capacity.

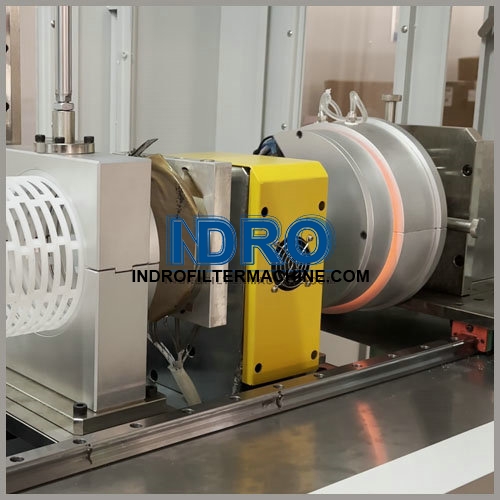

SIIC-M028-ECW-IR-A: Infra-red welding system, pneumatic drive, welding cap from one end per time.
SIIC-M028-ECWH-IR-A: Infra-red welding system, pneumatic drive, welding caps from both ends per time, double production capacity.
SIIC-M028-ECWH-IR-S: Infra-red welding system, servo drive, welding caps from both ends per time, double production capacity.



1. Liquid filtration high flow pleated filter cartridges making process:

-Making cartridge pleats: Using high flow filter paper pleating machine to make filter cartridges pleats

-Welding middle seam: Using middle seam welder to do middle seam thermal welding of filter cartridges paper

-Length cutter/controller: Using high flow filter cartridge length cutter to cut/trim offer of pleated filter paper

-Cartridge shaping: Putting filter membrane with correct length into the outer cage (plastic shell) with inner core inside of the membrane to keep pleated filter cartridge have initial shape.

-End cap and connector ends welding: Using high flow filter cap welder to welding connector ends onto end of filter cartridges, for making 60inch, need to weld the cap on one of the ends of 20inch length or 40inch length piece. Do not need to weld cap for welding connector end.

-Length connector welding: for 20”/30”/40” long pleated filter cartridges, normally using high flow pleated filter cartridge length connecting welder to weld  2/3/4 pieces of 10” pieces together to complete 20”/30”/40”long pleated filter cartridges. For making 60inch length, after welding cap onto one of the ends of either 20inch or 40inch piece, then using length connector welder to make 60inch high flow filter.


2. To make one complete pieces of high flow pleated filter cartridge, you need to use following items of machines:
SIIC-M028-P1100: pleats maker, pleated cartridge filter paper pleating machine, special for folding /pleating filter paper of filter cartridge
SIIC-M028-ECW:pleated cartridge-ends cover welder, special for welding end cover of filter cartridge
SIIC-M028-LJW: high flow pleated cartridge length connecting welder, special for connecting cartridge together to become longer cartridge, such as 20", two parts, one joint, 30" three parts with 2 joints, 40" 4 parts with 3 joints, one 20 inch and one 40 inch to get 60 inch piece.
SIIC-M025-MSW: pleated cartridge-middle seam welder, special for welding middle seam of outer cover of pp pleated filter cartridge
SIIC-M028-LC: high flow pleated cartridge length cutter, special for cutting cartridge length-pleats width, do trimming of pleats edges.
