Multi-Pocket Air Filter Making Machines Line

Name: Multi-Pocket Air Filter Making Machines Line
Brand: INDRO FILTER MACHINE
SKU: SIIC-M042
Availability: InStock
Rating: 5 (1 reviews)

Item No.: SIIC-M042

SIIC-M042 is special machines line used for making multi-pocket air filters, including all process of pocket welding/cutting, metal frames forming, clamp strip manufacturing, riveting of inner outer frames, clamping and assembly of holding strips.

INQUIRY

PDF Format

Description

Multi-Pocket Air Filter Making Machines Line
Model No.: SIIC-M042

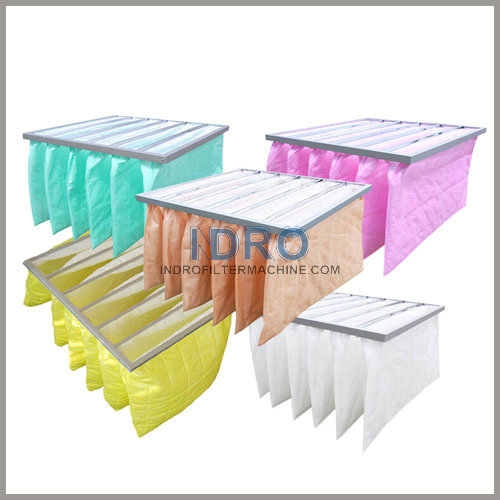

SIIC-M042 is special machines line used for making M5-M6-F7-F8 multi-pocket air filters. This production line includes a complete set of equipment for pocket making (welding/cutting), metal frames forming, clamp strip manufacturing, riveting of inner and outer frames, clamping and assembly of holding strips of all production and assembly processes.

Main parts:

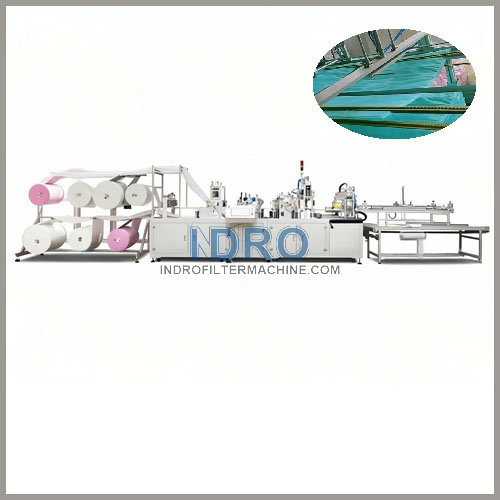

1.Non-woven fabric pocket making machine
special for making pocket body pieces of M5-M6-F7-F8 multi-pocket air filters
pocket width:300-800mm to be custom made according to customer’s requirement.
layers:6-12layers, to be custom made according to customer’s requirement.
Production capacity:10-30pcs per minute

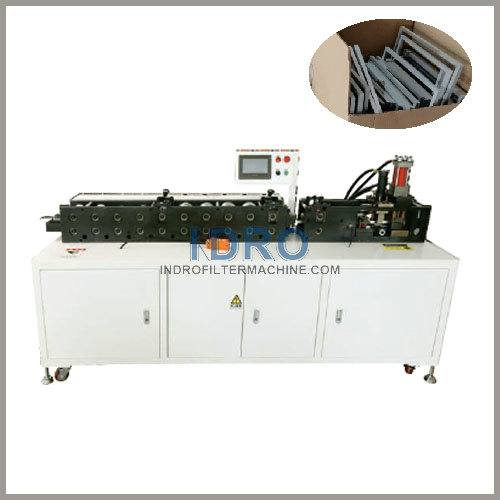

2.Inner Metal Frames making machine
Used for making inner metal frames of multi-pocket air bag filter.
Production capacity: 600-800pcs per minute
Max material width:700mm, others to be custom made.

3.Outer Metal Frames making machine
Used for making outer metal frames of air filters
Production capacity: 8-10meters per minute
Max material width:700mm, others to be custom made.

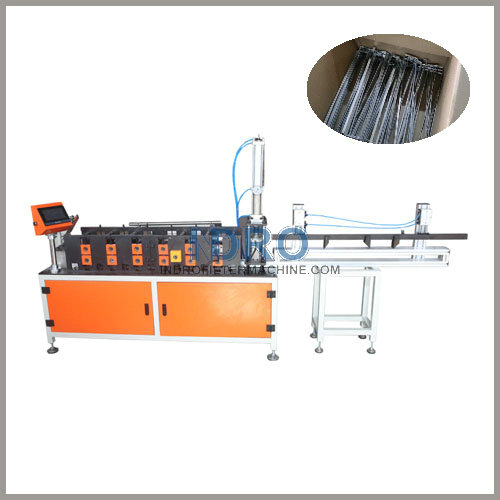

4.Clamp strip making machine
Used for making metal strips which are used for clamping and fixing the pockets of air bag filters.
Production capacity:1200-1800pcs per hour
Automatic length control and cutting
With automatic feeding part
Easy operation

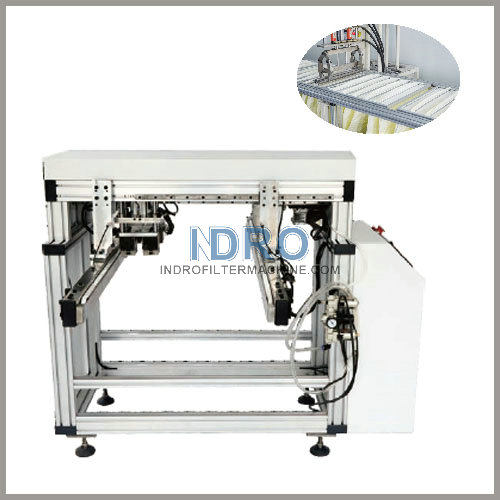

5. Strip clamping and fixing machines
Used for pressing and riveting clamping strips tightly and fixing the pockets of air filters.
Production capacity:40-50s/pc
Available pocket media thickness: 2-10mm
To be controlled by machine
Stable pressing and riveting to ensure quality
Easy operation

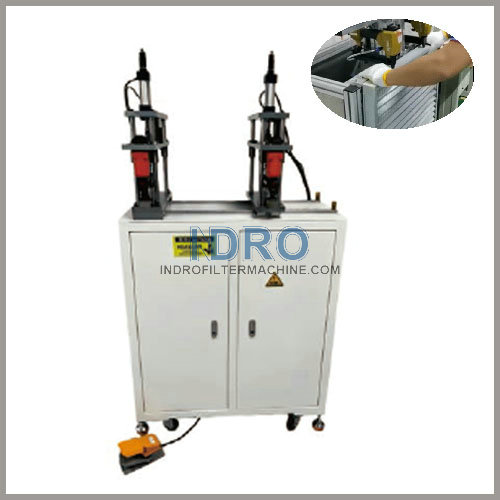

6. Outer frame fixing nailing machine
Used for nailing and fixing the outer frames and filter media.
Production capacity:30-40times/minute
The distance of nailing is adjustable
Available for frames with different materials and different sizes
Stable and good performance
Easy operation
