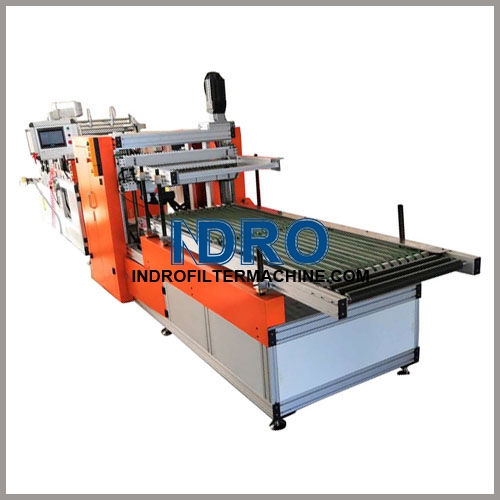

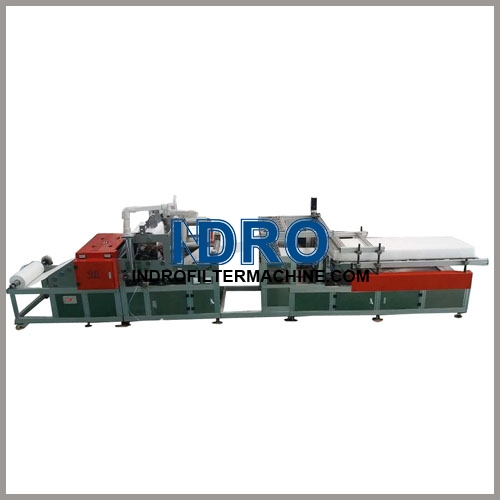

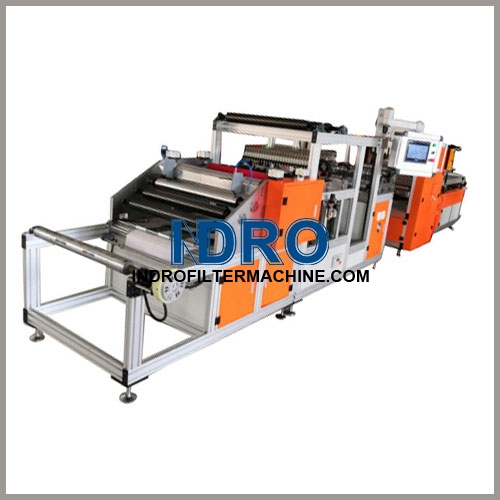

pleated air filter pleating and gluing machine production line

Item No.: SIIC-M033

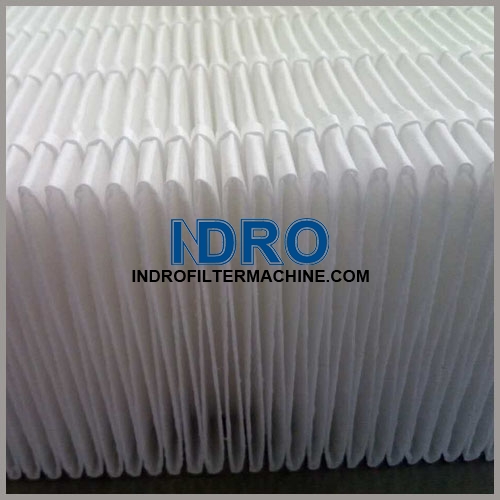

SIIC-M033 pleated air filter pleating and gluing machine production line is special for making pleats and gluing of pleated air filters, such as mini pleats, compact pleated air filter, W-V air filters, pleated panel filters.
INQUIRY
Description Video
SIIC-M033 pleated air filter pleating and gluing machine production line is special for making pleats and gluing of pleated air filters, such as mini pleats, compact pleated air filter, W-V air filters, pleated panel filters.

Machine operation process: PP or fiberglass filter paper feeding-tensioning control-impression-trimming-glue nozzle open and close automatically-glue spraying automatically-fan cooling-pleats forming- pleats output (synchronous belt conveyor - conveying aluminium rolling)

Specification Data:
Max pleats width: 900mm other width can be custom made
Pleats depth: 20-300mm, set up on screen as per your requirement
The pleats is very flat and the distance between corrugates is uniform.
Pleating speed: 2-38m/min
Glue line space: 25.4mm
Gluing type: continuous gluing, single surface gluing, double surfaces gluing, discontinuous gluing, dislocation arrangement gluing, jump gluing (gluing breaks for one pleat per several pleats)

Function: Do filter media pleating and gluing of pleated air filters, such as mini pleats, compact pleated air filter, panel pleated air filter.
