Vertical Automatic Case Unpacking & Bottom Sealing Machine
Model No.: SIIC-M040-VCUBS
Vertical automatic case unpacking & bottom sealing machine uses suction cups for synchronous carton forming, flap folding and bottom sealing, with vertical carton storage, parameter
‑saving touch screen, capacity up to 700 cases/hour.
Technical Features
-Adopts suction
‑cup type unpacking. Suction, forming, flap folding and bottom sealing are completed synchronously.
-Equipped with touch
‑screen with graphical operation interface. Parameter settings can be saved for easy operation.
-Vertical carton storage design for convenient carton replenishment.

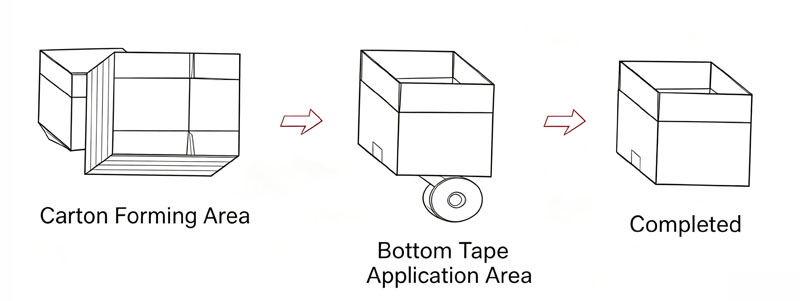

Case unpacking schematic diagram
Machine Parameters
-Equipment Dimensions: L200cm × W190cm × H145cm
-Applicable Carton Size: L20
‑45cm, W15
‑40cm, H10
‑35cm; other sizes can be custom
‑made
-Applicable Tape: Width 48
‑60
‑75 mm, Length 1000 yards
-Unpacking Speed: approx. 700 cases per hour
-Worktable Height: 60
‑72 cm
-Power Supply: Single
‑phase, 220V / 50Hz
-Air Source: 0.6
‑0.7 MPa
