Pleated filter cartridge length cutter

Item No.: SIIC-M025-LC
INDRO SIIC-M025-LC pleated cartridge length cutter is special for cutting and trimming off pleated filter paper, 10inch and 20 inch are available.
INQUIRY
Description Specification Filter Making Process Video
Pleated cartridge length cutter
Model No.: SIIC-M025-LC


INDRO SIIC-M025-LC pleated cartridge length cutter is special for cutting and trimming off pleated filter paper.


Applications: widely used in for cutting and trimming off pleated filter cartridges filter paper.

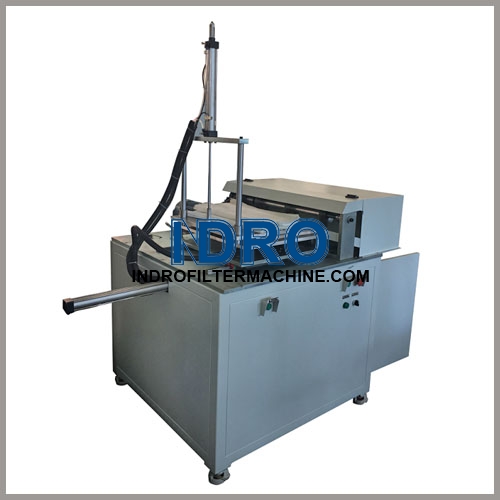

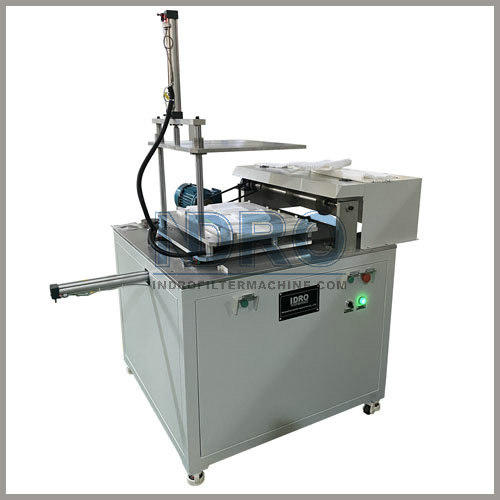

SIIC-M025-LC-P: 10" and 20" are available, other width are available.

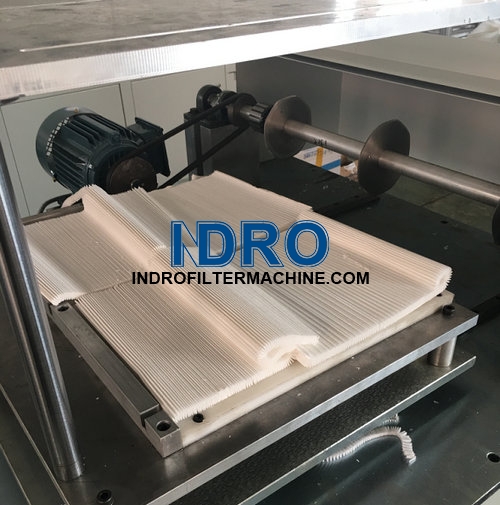

Makes 2 pleats packs once. Do trimming off of pleated media to get exact length before putting into cage.

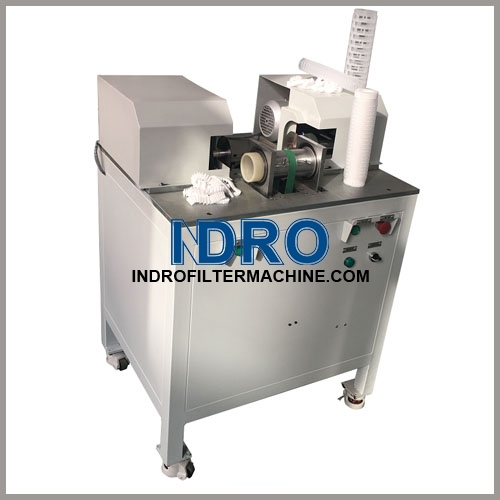

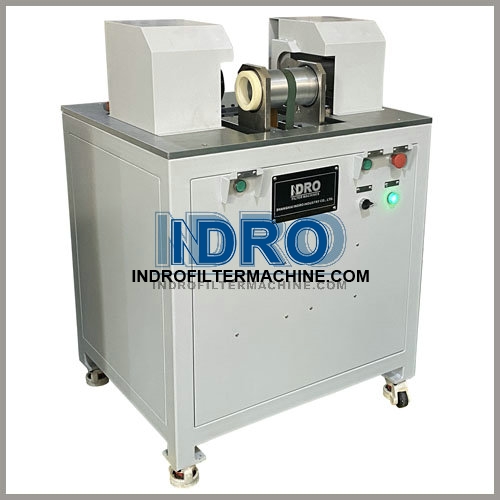

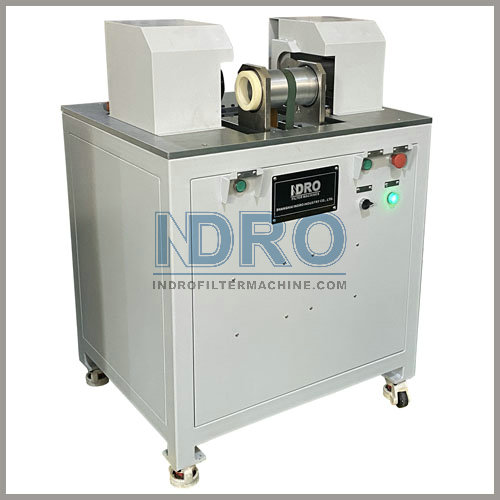

SIIC-M025-LC-R: 10" is available, cutting both ends once.

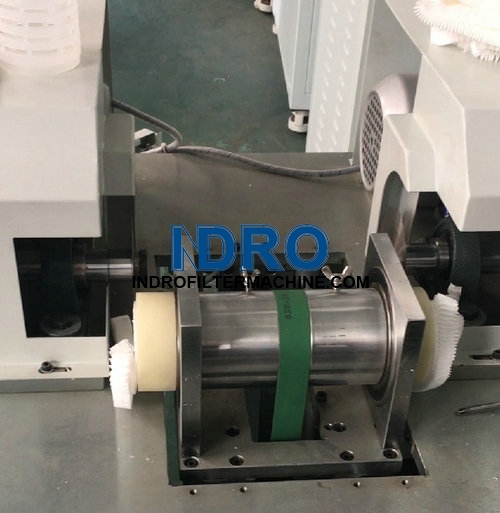

Do trimming off of pleated media to get exact length after putting pleated media into cage.



As one industrial filters machine manufacturer and supplier, Shanghai Indro Industry Co., Ltd is manufacturing and supplying micro porous folded filter welding machines- equipments, PP-PES-FIBERGLASS-NYLON-PTFE pleated filter cartridge production line, high flow pleated filter cartridges production line, we also supply plastic parts of pleated filter cartridges, including outer cage, inner core, cartridge caps and connecting ends parts.


Specs/Features:
Do trimming off of pleated media to get exact length
Rotating cutting knife

Cutting pleats width and do trimming off of filter cartridge pleats edges automatically.
Ensure that the cutting ends are flat and smooth.
Improve production capacity.
SIIC-M025-LC-P: 10" and 20" are available, other width are available.
Makes 2 pleats packs once. Do trimming off of pleated media to get exact length before putting into cage.
SIIC-M025-LC-R: 10" is available, cutting both ends once.
Do trimming off of pleated media to get exact length after putting pleated media into cage.


1. About liquid filtration pleated filter cartridges making process:
-Making cartridge pleats: Using filter paper pleating machine to make filter cartridges pleats
-Welding middle seam: Using middle seam welder to do middle seam thermal welding of filter cartridges paper
-Length cutter/controller: Using filter cartridge length cutter to cut/trim off of pleated filter paper
-Cartridge shaping: Putting filter membrane with correct length into the outer cage (plastic shell) with inner core inside of the membrane to keep pleated filter cartridge have initial shape.
-End cap welding: Using cap welder to welding cap onto both ends of filter cartridges
-Length jointing/connecting: for 20”/30”/40” long pleated filter cartridges, normally using pleated filter cartridge length connecting welder to weld  2/3/4 pieces of 10” pieces together to complete 20”/30”/40”long pleated filter cartridges.
-Fitting end welding: using pleated filter cartridge fitting end welder to weld different types of fitting ends together with both ends of pleated cartridges and form one complete piece of pleated filter cartridges. The different ends types include: flat cover, fin, DOE215/220/222/226, M20/30 thread and other.

2. To make one complete pieces of pp/polypropylene pleated filter cartridge, you need to use following items of machines:
SIIC-M025-P: pleated cartridge filter paper pleating machine, special for folding /pleating filter paper of filter cartridge
SIIC-M025-EC:pleated cartridge-ends cover welder, special for welding end cover of filter cartridge
SIIC-M025-EW: PP/polypropylene pleated cartridge-ends welder, special for welding different types of ends of pp pleated filter cartridges.
SIIC-M025-LJ: PP/polypropylene pleated cartridge length joints welder, special for connecting cartridge together to become longer cartridge, such as 20", two parts, one joint, 30" three parts with 2 joints, 40" 4 parts with 3 joints.
SIIC-M025-MSW: pleated cartridge-middle seam welder, special for welding middle seam of outer cover of pp pleated filter cartridge
SIIC-M025-LC: PP/polypropylene pleated cartridge length cutter, special for cutting cartridge length.
Video of filter cutter: Model SIIC-M025-LC-P


Video of filter cutter: SIIC-M025-LC-R
