Pleats maker-pleated filters filter paper pleating machine

Item No.: SIIC-M025-P600
INDRO SIIC-M025-P600 pleats maker-pleated filters filter paper pleating machine is special for making pleats of 3-5 layers of filter media of PP-PES-NYLON-FIBERGLASS-PTFE pleated filters.
INQUIRY
Description Specification Filter Making Process Video

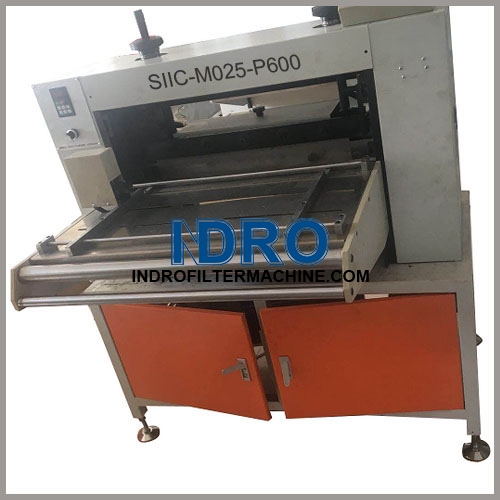

Pleats maker-pleated filters filter paper pleating machine
Model No.: SIIC-M025-P600


INDRO SIIC-M025-P600 pleats maker-pleated filters filter paper pleating machine is special for making pleats of 3-5 layers of filter media of PP-PES-NYLON-FIBERGLASS-PTFE pleated filters.

Applications: widely used in making pleats of filters.


As one industrial filters machine manufacturer and supplier, Shanghai Indro Industry Co., Ltd is manufacturing and supplying micro porous folded filter welding machines- equipments, PP-PES-FIBERGLASS-NYLON-PTFE pleated filter cartridge production line, high flow pleated filter cartridges production line, we also supply plastic parts of pleated filter cartridges, including outer cage, inner core, cartridge caps and connecting ends parts.


Specs/Features:
Max paper width: 600mm or other as per your requirement.
Pleats Depth: 8-55mm adjustable
Max pleats speed: 120pleats/min
Max pleats length speed: 12m/min (different as per different pleats depth)
SIIC-M025-P600-PLC: automatic, with PLC.
SIIC-M025-P600: semi-automatic, without PLC.


1. About liquid filtration pleated filter cartridges making process:

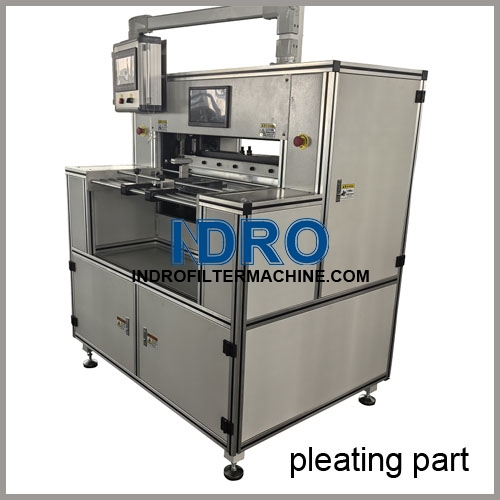

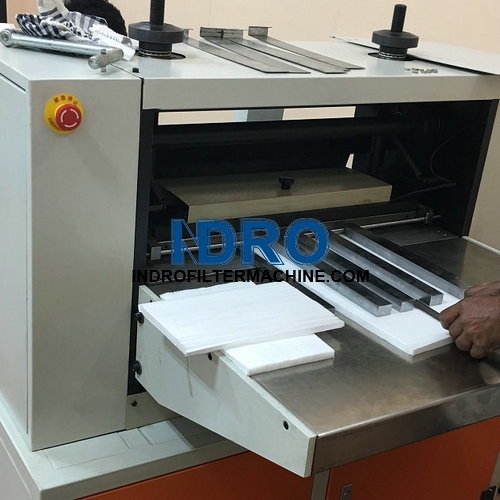

-Making cartridge pleats: Using filter paper pleating machine to make filter cartridges pleats
-Welding middle seam: Using middle seam welder to do middle seam thermal welding of filter cartridges paper

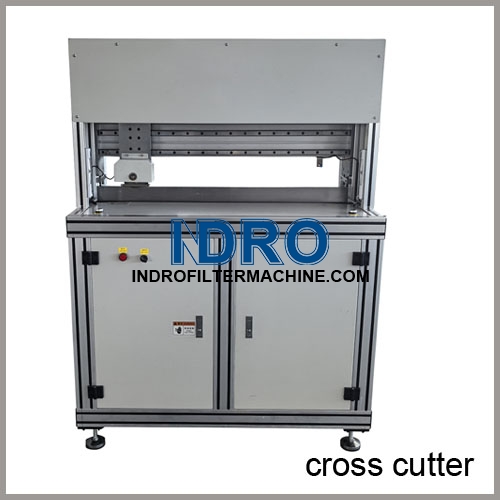

-Length cutter/controller: Using filter cartridge length cutter to cut/trim off of pleated filter paper
-Cartridge shaping: Putting filter membrane with correct length into the outer cage (plastic shell) with inner core inside of the membrane to keep pleated filter cartridge have initial shape.
-End cap welding: Using cap welder to welding cap onto both ends of filter cartridges
-Length jointing/connecting: for 20”/30”/40” long pleated filter cartridges, normally using pleated filter cartridge length connecting welder to weld  2/3/4 pieces of 10” pieces together to complete 20”/30”/40”long pleated filter cartridges.
-Fitting end welding: using pleated filter cartridge fitting end welder to weld different types of fitting ends together with both ends of pleated cartridges and form one complete piece of pleated filter cartridges. The different ends types include: flat cover, fin, DOE215/220/222/226, M20/30 thread and other.

2. To make one complete pieces of pp/polypropylene pleated filter cartridge, you need to use following items of machines:
SIIC-M025-P: pleated cartridge filter paper pleating machine, special for folding /pleating filter paper of filter cartridge
SIIC-M025-EC:pleated cartridge-ends cover welder, special for welding end cover of filter cartridge
SIIC-M025-EW: PP/polypropylene pleated cartridge-ends welder, special for welding different types of ends of pp pleated filter cartridges.
SIIC-M025-LJ: PP/polypropylene pleated cartridge length joints welder, special for connecting cartridge together to become longer cartridge, such as 20", two parts, one joint, 30" three parts with 2 joints, 40" 4 parts with 3 joints.
SIIC-M025-MSW: pleated cartridge-middle seam welder, special for welding middle seam of outer cover of pp pleated filter cartridge
SIIC-M025-LC: PP/polypropylene pleated cartridge length cutter, special for cutting cartridge length.
